Product Summary

The KTB688 is a triple diffused PNP transistor. It is suitable for high power amplifier application.

Parametrics

KTB688 absolute maximum ratings: (1)collector-base voltage, VCBO: -120V; (2)collector emitter voltage, VCEO: -120V; (3)emitter base voltage, VEBO: -5V; (4)collector current, IC: -10A; (5)base current, IB: -1A; (6)collector power dissipation, PC: 80W; (7)junction temeprature, Tj: 150℃; (8)storage temeprature range, Tstg: -55 to 150℃.

Features

KTB688 fetures: (1)complementary to KTD718; (2)recommended for 45-50W audio frequency amplifier output stage.

Diagrams

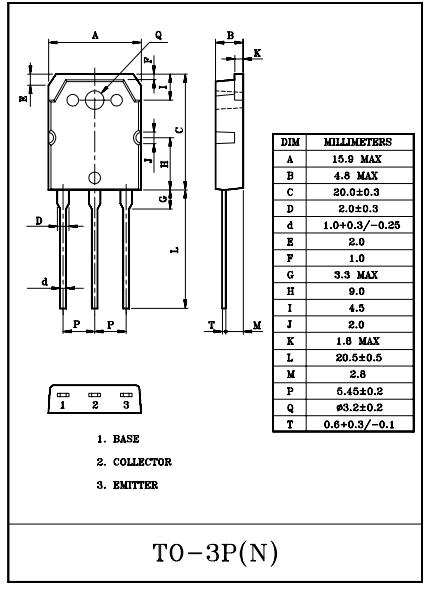

KTB688 blcok diagram
