AT45DB041D-SU

Product Summary

The AT45DB041D-SU is a 2.5V or 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The AT45DB041D-SU supports RapidS serial interface for applications requiring very high speed operations. RapidS serial interface is SPI compatible for frequencies up to 66 MHz. Its 4,325,376 bits of memory are organized as 2,048 pages of 256 bytes or 264 bytes each. In addition to the main memory, the AT45DB041D-SU also contains two SRAM buffers of 256/264 bytes each. The AT45DB041D-SU is enabled through the chip select pin (CS) and accessed via a three-wire interface consisting of the Serial Input (SI), Serial Output (SO), and the Serial Clock (SCK).

Parametrics

AT45DB041D-SU absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (including NC Pins); (4)with Respect to Ground:-0.6V to +6.25V; (5)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.

Features

AT45DB041D-SU features: (1)Single 2.5V or 2.7V to 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency, SPI Compatible Modes 0 and 3; (3)Two SRAM Data Buffers (256/264 Bytes):Allows Receiving of Data while Reprogramming the Flash Array; (4)Continuous Read Capability through Entire Array:Ideal for Code Shadowing Applications; (5)Low-power Dissipation:7 mA Active Read Current Typical,25μA Standby Current Typical,5μA Deep Power-down Typical; (6)Hardware and Software Data Protection Features:Individual Sector; (7)Sector Lockdown for Secure Code and Data Storage:Individual Sector; (8)Security: 128-byte Security Register:64-byte User Programmable Space, Unique 64-byte Device Identifier; (9)JEDEC Standard Manufacturer and Device ID Read; (10)100,000 Program/Erase Cycles Per Page Minimum; (11)Data Retention:20 Years; (12)Industrial Temperature Range; (13)Green (Pb/Halide-free/RoHS Compliant) Packaging Options.

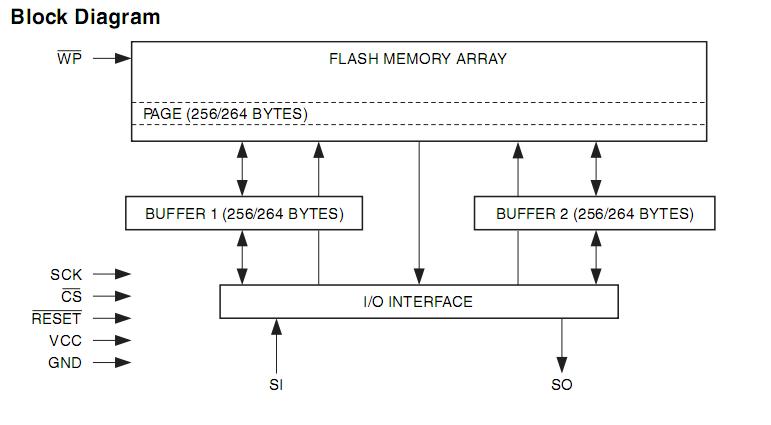

Diagrams
