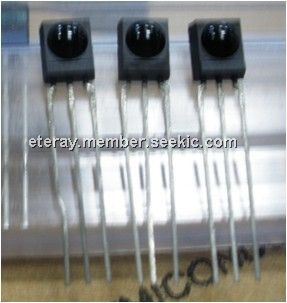

Product Summary
The TSOP34138 is miniaturized receiver for infrared remote control system. A PIN diode and a preamplifier are assembled on a lead frame, the epoxy package acts as an IR filter. The TSOP34138 is compatible with all common IR remote control data formats. It is immune to dimmed LCD backlighting and any fluorescent lamps.
Parametrics
TSOP34138 absolute maximum ratings: (1)Supply voltage, VS: -0.3 to +6V; (2)Supply current, IS: 3mA; (3)Output voltage, VO - 0.3 to (VS+0.3)V; (4)Output current, IO: 5mA; (5)Junction temperature, Tj: 100℃; (6)Storage temperature range, Tstg: -25 to +85℃; (7)Operating temperature range, Tamb: -25 to +85℃; (8)Power consumption Tamb, 85℃, Ptot: 10mW; (9)Soldering temperature, t=10 s, 1 mm from case, Tsd: 260℃.
Features
TSOP34138 features: (1)Very low supply current; (2)Photo detector and preamplifier in one package; (3)Internal filter for PCM frequency; (4)Improved shielding against EMI; (5)Supply voltage: 2.5V to 5.5V; (6)Improved immunity against ambient light; (7)Insensitive to supply voltage ripple and noise; (8)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

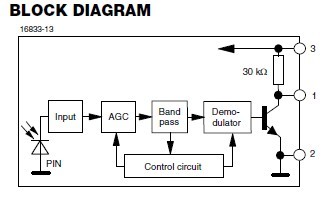

Diagrams
