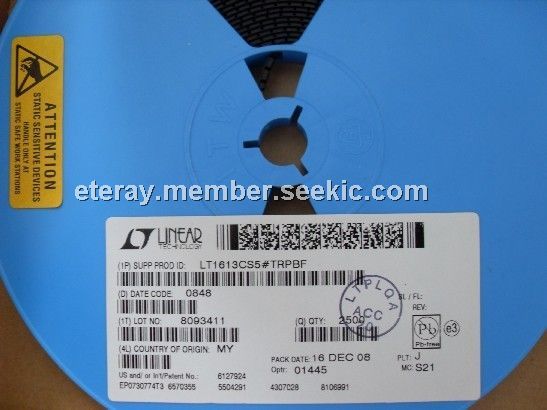

LT1613CS5#TRPBF

5-lead SOT-23, current mode, DC/DC converter, –0.4V to 36V, Low ShutdowCurrent

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.35~0.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.35~0.46

PartNumber:: LT1613CS5#TRPBF

Brand:: Linear Technology - Linear | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Crystal Xu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-18

From Other Seller

Part Number:LT1613CS5#TRPBF
US $0.35 - 0.46
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1613CS5#TRPBF is the industrys first 5-lead SOT-23 current mode DC/DC converter. Intended for small, low power applications, the LT1613CS5#TRPBF operates from an input voltage as low as 1.1V and switches at 1.4MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height. Its small size and high switching frequency enables the complete DC/DC converter function to take up less than 0.2 square inches of PC board area. Multiple output power supplies of the LT1613CS5#TRPBF can now use a separate regulator for each output voltage, replacing cumbersome quasi-regulated approaches using a single regulator and a custom transformer.

Parametrics

LT1613CS5#TRPBF absolute maximum ratings: (1)VIN Voltage: 10V; (2)SW Voltage: –0.4V to 36V; (3)FB Voltage: VIN + 0.3V; (4)Current into FB Pin: ±1mA; (5)SHDN Voltage: 10V; (6)Maximum Junction Temperature: 125℃; (7)Operating Temperature Range: Commercial: 0℃ to 70℃; Extended Commercial: –40℃ to 85℃; (8)Storage Temperature Range: –65℃ to 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1613CS5#TRPBF features: (1)Uses Tiny Capacitors and Inductor; (2)Internally Compensated; (3)Fixed Frequency 1.4MHz Operation; (4)Operates with VIN as Low as 1.1V; (5)3V at 30mA from a Single Cell; (6)5V at 200mA from 3.3V Input; (7)15V at 60mA from Four Alkaline Cells; (8)High Output Voltage: Up to 34V; (9)Low ShutdowCurrent: <1uA; (10)Low VCESAT Switch: 300mV at 300mA; (11)Tiny 5-Lead SOT-23 Package.
