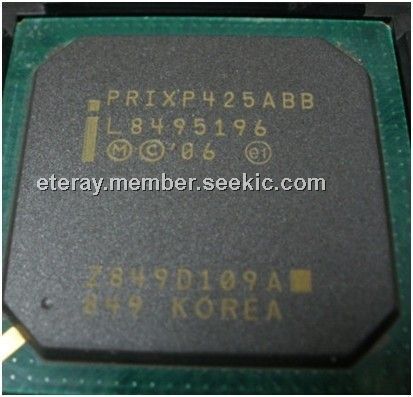

PRIXP425ABB

Product Summary

The Intel PRIXP425ABB network processor is a highly integrated, versatile single-chip processor that can be used in a variety of products requiring network connectivity and high performance to run their unique software applications. The Intel PRIXP425ABB network processor combines integration with support for multiple WAN and LAN technologies in a common architecture to meet requirements for high-end gateways, Voice over IP (VoIP) applications, wireless access points, SME routers, switches, security devices, (DSLAMs), xDSL line cards, industrial control and networked imaging applications. The PRIXP425ABB offers a choice of multiple clock speeds at 266, 400, and 533 MHz, with both commercial and extended temperature options.

Features

PRIXP425ABB features: (1)Intel XScale processor at up to 533 MHz provides headroom for customer-defined applications; (2)Integrated hardware acceleration of popular cryptography algorithms (SHA-1, MD5, DES, 3DES, AES) for protected applications; (3)DSP software library on the Intel XScale processor supports two to four voice channels and reduces system cost; (4)Two high-speed serial (HSS) interfaces for VoIP SLIC/CODEC or T1/E1; (5)Two integrated 10/100 Base-T Ethernet MACs with Media Independent Interface (MII) for design flexibility and cost-effective wire-speed performance; (6)UTOPIA 2 interface with multiple ADSL/ G.SHDSL or VDSL support; (7)33/66 MHz PCI v2.2 host and option interface for glueless connection of up to four devices; (8)SDRAM controller supports from 8 to 256 Mbytes of SDRAM memory; (9)Average consumption of 1.5W to a minimum of 1.9W; (10)USB version 1.1 device controller; (11)Two high-speed UARTS can be configured to support speed from 1200 baud to 921 Kbaud each; (12)Sixteen GPIO pins; (13)16-bit expansion bus allows easy glueless connection to peripheral devices; (14)266/400/533 MHz commercial (0℃ to 70℃); (15)266/400/533 MHz extended temperature (-40℃ to +85℃) versions.

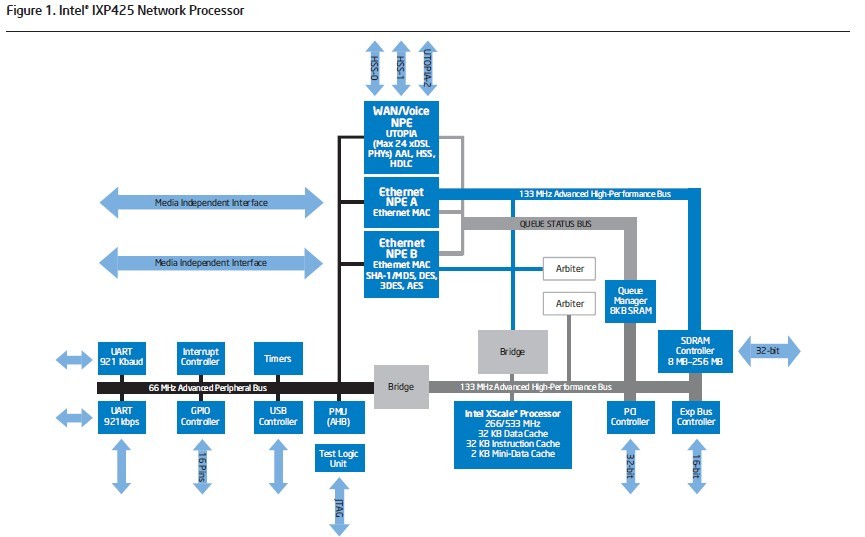

Diagrams
