Product Summary

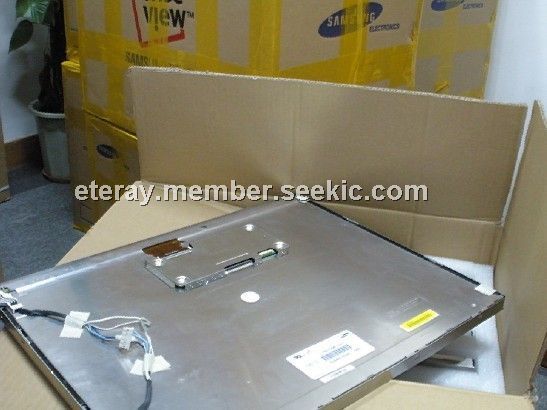

The LTM213U6-L01 is a Color Active Matrix TFT(thin film transistor)Liquid Crystal Display(LCD) that uses amorphous silicon TFT as a switching devices. This model is composed of a TFT LCD panel, a driver circuit and a back-light system. The applications of the LTM213U6-L01 include: (1)Workstation & high end desktop monitors; (2)Display terminals for AV application products; (3)Monitors for industrial machine.
Parametrics
LTM213U6-L01 absolute maximum ratings: (1)Power supply voltage VDD: min=VSS-0.5V, max=6.0V; (2)Lamp current IL: min=3.0mArms, max=8.0mArms; (3)Lamp frequency fL: min=30KHz, max=60KHz.
Features
LTM213U6-L01 features: (1)High contrast ratio, high aperture structure; (2)APVA(advanced patterned vertical alignment)mode; (3)Wide viewing angle; (4)High speed response; (5)UXGA(1600×1200 pixels)resolution; (6)Low power consumption; (7)Replaceable 6 CCFTs(Cold cathode fluorescent tube); (8)DE only mode; (9)Open LDI.
Diagrams
 |
