Product Summary

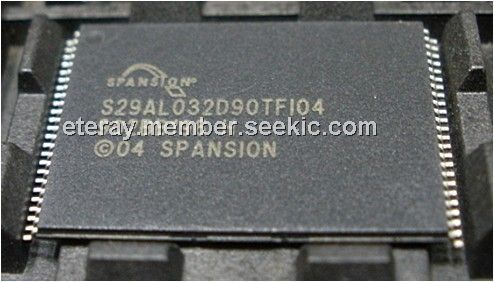

The S29AL032D90TFI04 is a 32 megabit, 3.0 volt-only flash memory device, organized as 2,097,152 words of 16 bits each or 4,194,304 bytes of 8 bits each. Word mode data appears on DQ0-DQ15; byte mode data appears on DQ0-DQ7. The S29AL032D90TFI04 is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The S29AL032D90TFI04 is available with access times as fast as 70 ns.
Parametrics
S29AL032D90TFI04 absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0V; (4)A9, OE#, and RESET# (Note 2): -0.5 V to +12.5V; (5)All other pins: -0.5V to VCC+0.5V; (6)Output Short Circuit Current:200mA.
Features
S29AL032D90TFI04 features: (1)Single power supply operation; (2)Manufactured on 200 nm process technology; (3)Flexible sector architecture; (4)Unlock Bypass Program Command; (5)Secured Silicon Sector; (6)Compatibility with JEDEC standards; (7)Ultra low power consumption (typical values at 5 MHz); (8)Cycling endurance: 1,000,000 cycles per sector typical; (9)Data retention: 20 years typical.

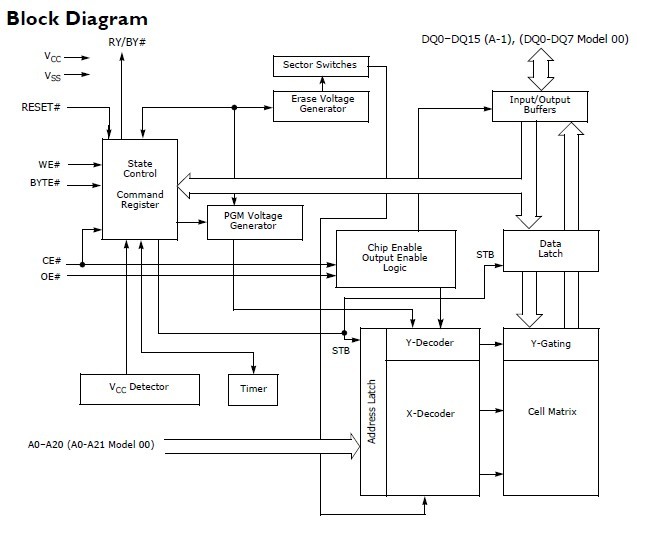

Diagrams
 |
