Product Summary

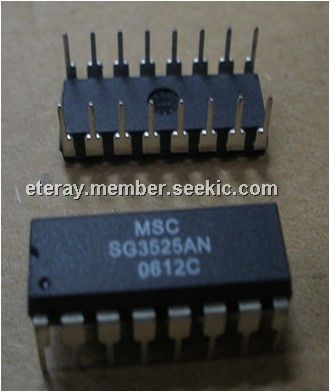

The SG3525AN is a pulse width modulator control circuit. It offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies. A wide range of deadtime can be programmed by a single resistor connected between the CT and Discharge pins. The SG3525AN also features built-in soft-start circuitry, requiring only an external timing capacitor. A shutdown pin controls both the soft-start circuitry and the output stages, providing instantaneous turn off through the PWM latch with pulsed shutdown, as well as soft-start recycle with longer shutdown commands. The under voltage lockout inhibits the outputs and the changing of the soft-start capacitor when VCC is below nominal. The output stages of the SG3525AN are totem-pole design capable of sinking and sourcing in excess of 200 mA. The output stage of the SG3525AN features NOR logic resulting in a low output for an off-state.

Parametrics

SG3525AN absolute maximum ratings: (1)Supply Voltage, VCC: +40 Vdc; (2)Collector Supply Voltage, VC: +40 Vdc; (3)Logic Inputs: -0.3 to +5.5 V; (4)Analog Inputs: -0.3 to VCC V; (5)Output Current, Source or Sink, IO: ±500 mA; (6)Reference Output Current, Iref: 50 mA; (7)Oscillator Charging Current: 5.0 mA; (8)Power Dissipation, PD: 1000mW when TA = +25℃; 2000mW when TC = +25℃; (9)Thermal Resistance, Junction-to-Air RθJA: 100℃/W; (10)Thermal Resistance, Junction-to-Case RθJC: 60℃/W; (11)Operating Junction Temperature, TJ: +150℃; (12)Storage Temperature Range, Tstg: -55 to +125℃; (13)Lead Temperature (Soldering, 10 seconds), TSolder: +300℃.

Features

SG3525AN features: (1)8.0 V to 35 V Operation; (2)5.1 V ±1.0% Trimmed Reference; (3)100 Hz to 400 kHz Oscillator Range; (4)Separate Oscillator Sync Pin; (5)Adjustable Deadtime Control; (6)Input Undervoltage Lockout; (7)Latching PWM to Prevent Multiple Pulses; (8)Pulse-by-Pulse Shutdown; (9)Dual Source/Sink Outputs: ±400 mA Peak; (10)Pb-Free Packages are Available.

Diagrams

SG3525AN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SG3525AN
SG3525AN

STMicroelectronics

Voltage Mode PWM Controllers Voltage Mode w/Sync

Data Sheet

0-1: $0.52
1-10: $0.47
10-100: $0.44
100-250: $0.41
SG3525ANG
SG3525ANG

ON Semiconductor

Voltage Mode PWM Controllers 8-35V PWM

Data Sheet

0-1: $0.70
1-25: $0.56
25-100: $0.49
100-500: $0.38
