Product Summary

The ISD17240SY is a high quality, fully integrated, single-chip multi-message voice record and playback device ideally suited to a variety of electronic systems. The message duration is user selectable in ranges from 26 seconds to 120 seconds, depending on the specific device. The sampling frequency of ISD17240SY can also be adjusted from 4 kHz to 12 kHz with an external resistor, giving the user greater flexibility in duration versus recording quality for each application. Operating voltage spans a range from 2.4V to 5.5V to ensure that the ISD17240SY is optimized for a wide range of battery or line-powered applications.

Parametrics

ISD17240SY absolute maximum ratings: (1)Junction temperature: 1500℃; (2)Storage temperature range: -650℃ to +1500℃; (3)Voltage Applied to any pads: VSS-0.3V to VCC+0.3V; (4)Power supply voltage to ground potential: -0.3V to +7.0V.

Features

ISD17240SY features: (1)Integrated message management systems for single-chip, push-button applications; (2)Selectable sampling frequency controlled by an external oscillator resistor; (3)Selectable message duration; (4)Message and operation indicators; (5)Dual operating modes; (6)Two individual input channels; (7)Dual output channels.

Diagrams

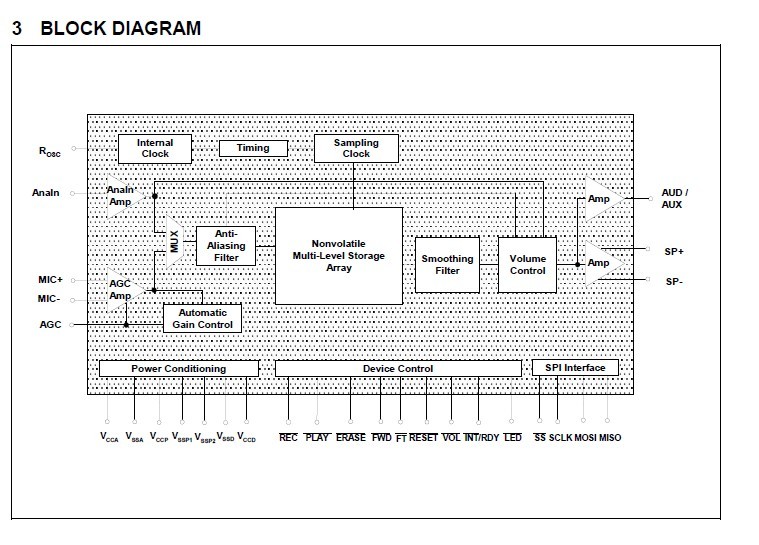

ISD17240SY block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ISD17240SY
ISD17240SY

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
0-1: $6.66
1-10: $6.05
10-100: $5.15
100-250: $4.69
250-500: $4.39
500-1000: $4.03
1000-2500: $3.87
2500-5000: $3.82
ISD17240SY01
ISD17240SY01

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
Negotiable
ISD17240SYI
ISD17240SYI

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
0-50: $6.17
ISD17240SYI01
ISD17240SYI01

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
Negotiable
ISD17240SYIR
ISD17240SYIR

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
Negotiable
ISD17240SYR
ISD17240SYR

IC VOICE REC/PLAY 240SEC 28-SOIC
Data Sheet
Negotiable
