Product Summary

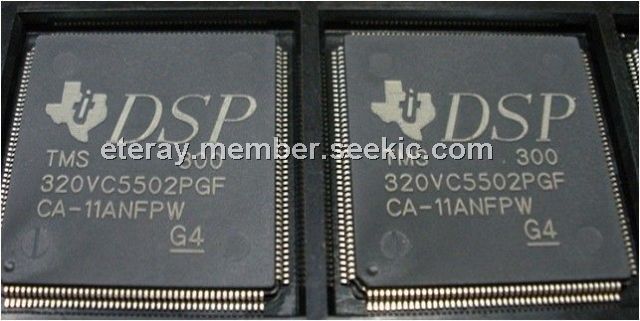

The TMS320VC5502PGF fixed-point digital signal processor (DSP) is based on the TMS320C55x DSP generation CPU processor core. The TMS320VC5502PGF DSP architecture achieves high performance and low power through increased parallelism and total focus on reduction in power dissipation. The CPU supports an internal bus structure that is composed of one program bus, three data read buses, two data write buses, and additional buses dedicated to peripheral and DMA activity. The TMS320VC5502PGF provides the ability to perform up to three data reads and two data writes in a single cycle. In parallel, the DMA controller can perform data transfers independent of the CPU activity.
Parametrics
TMS320VC5502PGF absolute maximum ratings: (1)Supply voltage I/O range, DVDD: -0.3V to 4.0V; (2)Supply voltage core range, CVDD: -0.3V to 2.0V; (3)Input voltage range, VI: -0.3V to 4.5V; (4)Output voltage range, Vo: -0.3V to 4.5V; (5)Operating case temperature range, TC: -40℃ to 85℃; (6)Storage temperature range, Tstg: -55℃ to 150℃.
Features
TMS320VC5502PGF features: (1)High-Performance, Low-Power, Fixed-Point; (2)Instruction Cache (16K Bytes); (3)16KX16-Bit One-Wait-State On-Chip ROM (32K Bytes); (4)8MX16-Bit Maximum Addressable External Memory Space; (5)Programmable Low-Power Control of Six Device Functional Domains; (6)On-Chip Peripherals.

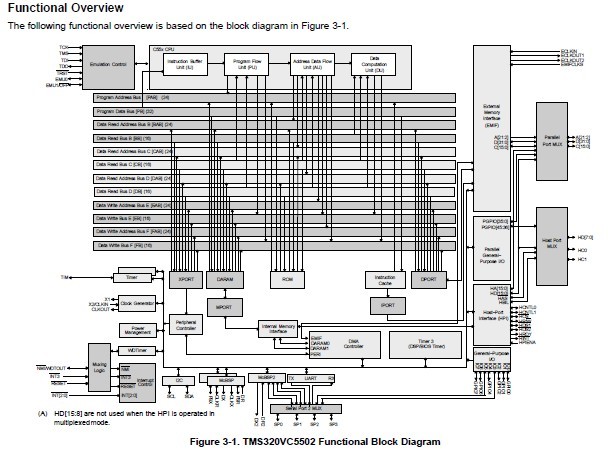

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320VC5502PGF200 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Processor |
Data Sheet |
|
|
||||||||||||
|
TMS320VC5502PGF300 |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Fixed-Pt Dig Signal Processor |
Data Sheet |
|
|
||||||||||||
