Product Summary

The KTD718 is a triple diffused NPN transistor. It is suitable for high power amplifier application.

Parametrics

KTD718 absolute maximum ratings: (1)collector-base voltage, VCBO: 120V; (2)collector-emitter voltage, VCEO: 120V; (3)emitter-base voltage, VEBO: 5V; (4)collector current, IC: 10A; (5)base current, IB: 1.0A; (6)collector power dissipation, PC: 80W; (7)junction temperature, Tj: 150℃; (8)storage temperature range, Tstg: -55 to 150℃.

Features

KTD718 features: (1)recommended for 45-50W audio frequency amplifier; (2)output stage; (3)complementary to KTB688.

Diagrams

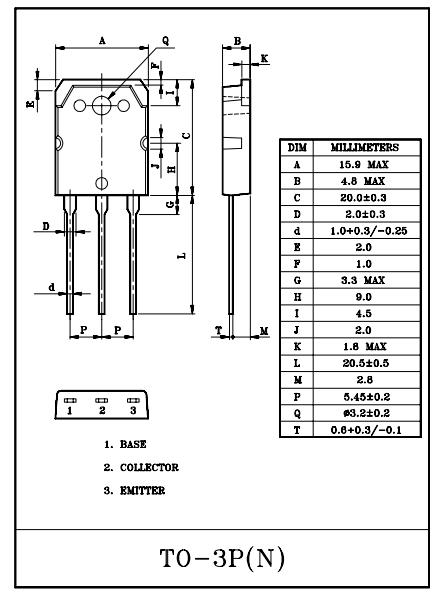

KTD718 block diagram
