Product Summary
The V23057-B0002-A401 is a power PCB relay. Applications of the V23057-B0006-A201 are I/O modules, heating control, timers.
Parametrics
V23057-B0002-A401 absolute maximum ratings: (1)Rated current: 8 A 5 A 5 A; (2)Rated voltage / max.switching voltage AC: 240/400 VAC; (3)Maximum breaking capacity AC: 2000 VA 1250 VA 1250 VA; (4)Limiting making capacity, max 4 s, duty factor 10%: 15 A; (5)Rated coil voltage range DC coil: 6 to 60 VDC; (6)Coil power DC coil: 450 to 500 mW; (7)Ambient temperature range: -40 to +70℃.
Features
V23057-B0002-A401 features: (1)1 pole 8 A, 1 CO or 1 NO contact; (2)4 kV coil-contact; (3)Vertical and horizontal version; (4)Version with bifurcated contacts; (5)Wash tight; (6)RoHS compliant (Directive 2002/95/EC) as per product date code 0426.

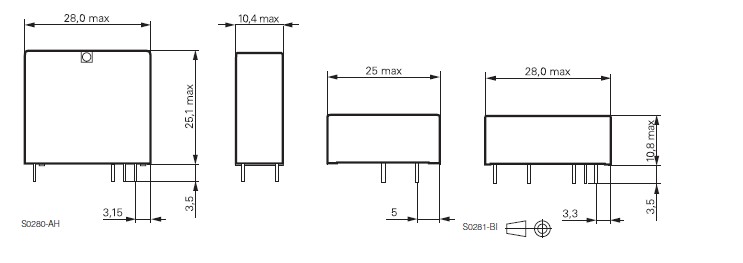

Diagrams
 |
