Product Summary

The VI-261-EU/F2 combines Vicor’s industry standard package with the flexibility of a power converter whose output voltage and output current may be independently set. The VI-261-EU/F2 allows the user to independently program a constant output current and a maximum float voltage. The float voltage of VI-261-EU/F2 is the point at which the BatMod transitions from constant current to constant voltage. These features make the VI-261-EU/F2 an ideal candidate for battery charging and other applications which require a controlled current source.

Parametrics

VI-261-EU/F2 absolute maximum ratings: (1)Nominal Input Voltage: 300Vdc; (2)Output Current: 0 to 14.5A; (3)Current Control Input: 1V to 5V; (4)Current Monitor Output: 1V to 5V; (5)Voltage Control Input: 0V to 2.5V; (6)Output Voltage Setpoint: 12V; (7)Dynamic Characteristics V Mode: 300 μsec typ. VNOM for 50 to 100%.

Features

VI-261-EU/F2 features: (1)Programmable Output Current; (2)Booster Versions Available; (3)Size: 4.6" x 2.4" x 0.5"(116,8 x 61,0 x 12,7); (4)UL, CSA, TUV; (5)Compatible with All Major Battery Types; (6)Inputs: 48, 150, 300Vdc; (7)Outputs: 12, 24, 48Vdc Nom.; (8)Analog Current Monitor; (9)Analog Overvoltage Adjust; (10)CE Marked.

Diagrams

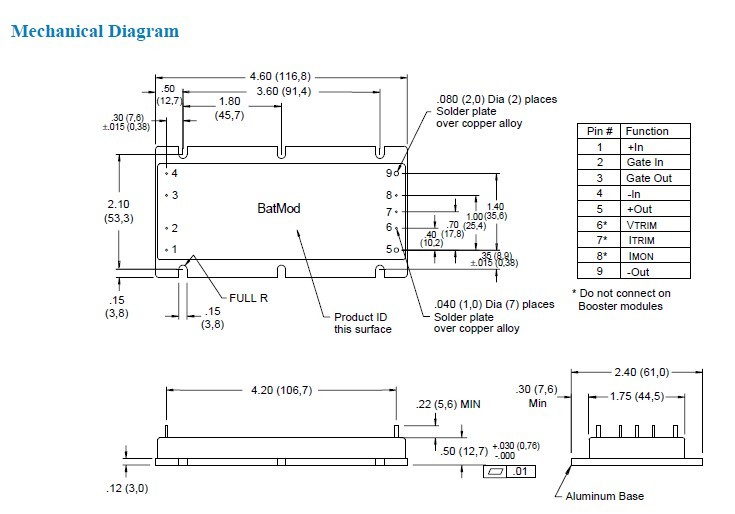

VI-261-EU/F2 Mechanical Diagram
