Product Summary

The S-150-24 is a 150W Single Output Switching Power Supply.

Parametrics

S-150-24 absolute maximum ratings: (1)setup, rise time: 100ms, 50ms at full load; (2)hold up time (Typ.): 28ms at full load; (3)working temp: -10 to 60℃; (4)working humidity: 20-90%RH.

Features

S-150-24 features: (1)AC input range selectable by switch; (2)Protections: Short circuit / Overload / Over voltage; (3)Cooling by free air convection; (4)100% full load burn-in test; (5)Fixed switching frequency at 25KHz; (6)2 years warranty.

Diagrams

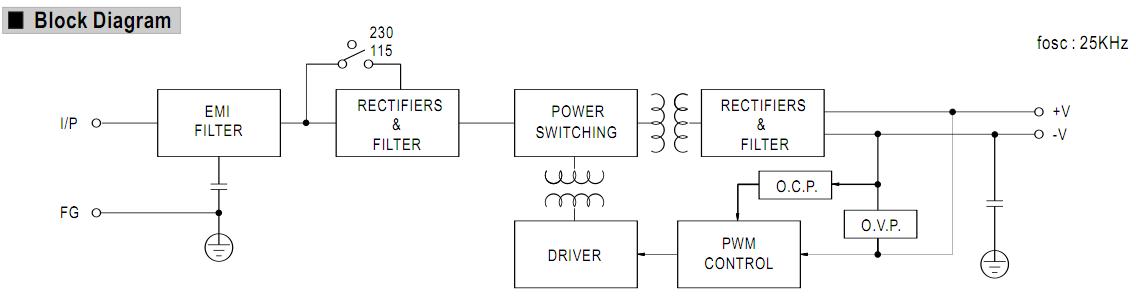

S-150-24 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S-150-24
S-150-24
Mean Well
Linear and Switching Power Supplies 156W 24V 6.5A
Data Sheet
0-1: $36.91
1-10: $33.22
10-20: $29.90
20-50: $25.67
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
S-150-13.5
S-150-13.5
Mean Well
Linear and Switching Power Supplies 151.2W 13.5V 11.2A
Data Sheet
0-1: $36.56
1-10: $32.88
10-20: $29.57
20-50: $25.39
S-150-15
S-150-15
Mean Well
Linear and Switching Power Supplies 150W 15V 10A
Data Sheet
0-1: $36.85
1-10: $33.17
10-20: $29.86
20-50: $25.63
S-150-24
S-150-24
Mean Well
Linear and Switching Power Supplies 156W 24V 6.5A
Data Sheet
0-1: $36.91
1-10: $33.22
10-20: $29.90
20-50: $25.67
S-150-27
S-150-27
Mean Well
Linear and Switching Power Supplies 151.2W 27V 5.6A
Data Sheet
0-1: $39.04
1-10: $35.11
10-20: $31.58
20-50: $27.12
S-150-5
S-150-5
Mean Well
Linear and Switching Power Supplies 150W 5V 30A
Data Sheet
0-1: $36.55
1-10: $32.89
10-20: $29.61
20-50: $25.42
S-150-9
S-150-9
Mean Well
Linear and Switching Power Supplies 150.3W 9V 16.7A
Data Sheet
0-1: $36.56
1-10: $32.88
10-20: $29.57
20-50: $25.39
