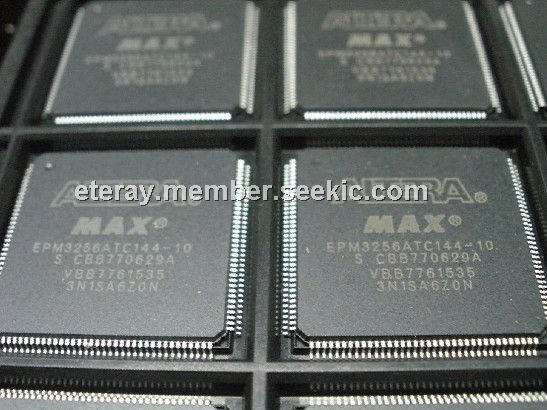

The EPM3256ATC144-10 is a low–cost, high–performance Programmable Logic device based on the Altera MAX architecture. Fabricated with advanced CMOS technology, the EPM3256ATC144-10 device operates with a 3.3-V supply voltage and provides 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz.
Parametrics
EPM3256ATC144-10 absolute maximum ratings: (1)Supply voltage: -0.5 to 4.6 V With respect to ground; (2)DC input voltage: -0.2 to 5.75 V With respect to ground; (3)DC output current, per pin: -25 to 25 mA; (4)Storage temperature: -65 to 150℃; (5)Ambient temperature: -65 to 135℃; (6)Junction temperature: 135℃.
Features
EPM3256ATC144-10 features: (1)High.performance, low.cost CMOS EEPROM.based programmable logic devices (PLDs) built on a MAXR architecture; (2)3.3-V in-system programmability (ISP) through the built.in; (3)IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with; (4)advanced pin-locking capability-ISP circuitry compliant with IEEE Std. 1532; (5)Built.in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (6)Enhanced ISP features: Enhanced ISP algorithm for faster programming, ISP_Done bit to ensure complete programming, Pull-up resistor on I/O pins during in.system programming.

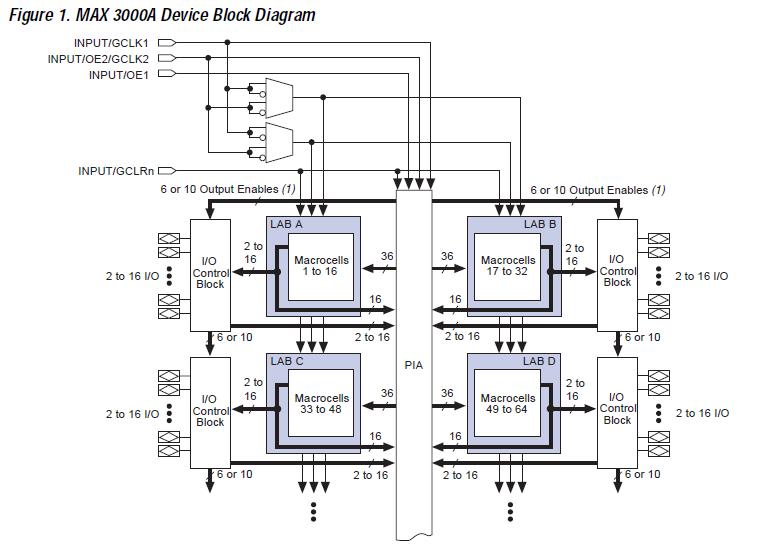

Diagrams
