Product Summary

The H9700 is a high performance, low cost, optical incremental encoder module. When operated in conjunction with either a codewheel or codestrip, this module detects rotary or linear position.

Parametrics

H9700 absolute maximum ratings: (1)Storage Temperature TS: -40 to 85℃; (2)Operating Temperature TA: -40 to 85℃; (3)Supply Voltage VCC: -0.5 to 7 V; (4)Output Voltage VO: -0.5 to VCC V; (5)Output Current per Channel IO: -1.0 to 5 mA; (6)Soldering Temperature: 260℃.

Features

H9700 features: (1)Small Size; (2)Low Cost; (3)Multiple Mounting Options; (4)Wide Resolution Range; (5)Linear and Rotary Options Available; (6)No Signal Adjustment Required; (7)Insensitive to Radial and Axial Play; (8)-40 to +85℃ Operating Temperature; (9)Two Channel Quadrature Output; (10)TTL Compatible; (11)Single 5V Supply; (12)Wave Solderable.

Diagrams

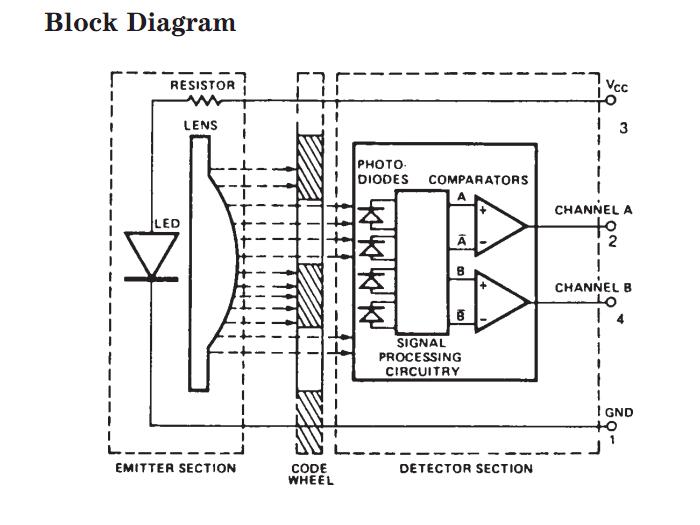

H9700 block diagram
