Product Summary

The HM4100F-N is a subminiature power relay.

Parametrics

HM4100F-N absolute maximum ratings: (1)max switching voltage: 300VAC/150VDC; (2)max switching current: 2A; (3)max switching power: 240VA/30W; (4)ambient temperature: -25 to 70℃.

Features

HM4100F-N features: (1)UL/CUR file No E170653; (2)extremely low cost SPDT configuration; (3)standard PC layout; (4)sealed version avaible.

Diagrams

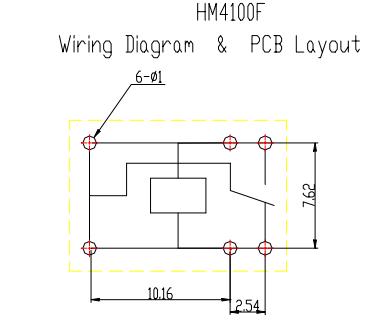

HM4100F-N block diagram
