Product Summary
The MC33167TV is a high performance fixed frequency power switching regulator that contains the primary functions required for dc-to-dc converters. This MC33167TV was specifically designed to be incorporated in step-down and voltage-inverting configurations with a minimum number of external components and can also be used cost effectively in step–up applications. The MC33167TV consists of an internal temperature compensated reference, fixed frequency oscillator with on–chip timing components, latching pulse width modulator for single pulse metering, high gain error amplifier, and a high current output switch.
Parametrics
MC33167TV maximum ratings: (1)Power Supply Input Voltage, VCC: 40 V; (2)Switch Output Voltage Range, VO(switch): –2.0 to + Vin V; (3)Voltage Feedback and Compensation Input Voltage Range, VFB, VComp: –1.0 to + 7.0 V; (4)Power Dissipation, Case 314A, 314B and 314D (TA = +25℃), PD: Internally Limited W, thermal Resistance, Junction–to–Ambient, θJA: 65 ℃/W; (5)Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; (6)Case 936A (D2PAK) (TA = +25℃), PD: Internally Limited W; (7)Thermal Resistance, Junction–to–Ambient, θJA: 70 ℃/W; (8)Thermal Resistance, Junction–to–Case, θJC: 5.0 ℃/W; (9)Operating Junction Temperature, TJ: +150 ℃; (10)Operating Ambient Temperature: – 40 to + 85℃; (11)Storage Temperature Range, Tstg: – 65 to +150 ℃.
Features
MC33167TV features: (1)Output Switch Current in Excess of 5.0 A; (2)Fixed Frequency Oscillator (72 kHz) with On–Chip Timing; (3)Provides 5.05 V Output without External Resistor Divider; (4)Precision 2% Reference; (5)0% to 95% Output Duty Cycle; (6)Cycle–by–Cycle Current Limiting; (7)Undervoltage Lockout with Hysteresis; (8)Internal Thermal Shutdown; (9)Operation from 7.5 V to 40 V; (10)Standby Mode Reduces Power Supply Current to 36 mA; (11)Economical 5–Lead TO–220 Package with Two Optional Leadforms; (12)Also Available in Surface Mount D2PAK Package.

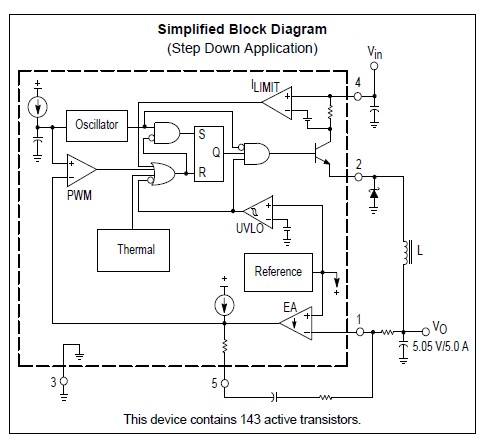

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC33167TV |
ON Semiconductor |
Switching Converters, Regulators & Controllers 40V 5A |
Data Sheet |
Negotiable |
|
||||||||||||
|
MC33167TVG |
ON Semiconductor |
Switching Converters, Regulators & Controllers 40V 5A Buck/Boost/Inverting |
Data Sheet |
|
|
||||||||||||
